Genset - 1200 KVA to 1500 KVA Specification
Make: Cummins India
1000-1200 kWe, 1250-1500 kVA Prime
Standard scope Engine
Cummins® ‘K series’ direct injection, water cooled engine, 12 cylinder, 4 stroke, rated at 1500 RPM, conforming to ISO 3046 / BS 5514 has the following specifications:
- Cummins PT fuel pump
- Cummins heavy duty STC injectors
- Holset turbocharger, pulse tuned exhaust manifold, stainless steel exhaust flexible connections
- Radiator or heat exchanger, coolant inhibitor,
- Plate type lube oil cooler
- Outboard aftercoolers
- Full flow paper element filters – fuel, lube oil and by-pass
- Dry type replaceable paper element air cleaner with restriction indicator
- Flywheel housing & flywheel to suit single / double bearing alternator
- Holset flexible coupling for double bearing alternator
- Starting motor – Electric, battery charging alternator
- Cummins PowerCommand® microprocessor based genset controller
- First fill lube oil
Control panel: PowerCommand® PC 3.3
- AmpSentry – Includes integral AmpSentry protection, which
- provides a full range of alternator protection function which are
- matched to the alternator provided.
- Power management – Control function provides battery
- monitoring, testing and a smart starting control system.
- Advanced control methodology – Three phase sensing, FET
- based full wave rectified voltage regulation and a PWM output for
- stable operation with all load types.
- Communications interface – Control comes standard with
- PCCNet and Modbus interface.
- Regulation compliant – Prototype tested: UL, CSA and CE compliant.
- Service - InPower™ PC-based service tool available for
- detailed diagnostics, setup, data logging and fault simulation.
- Reliable design – For reliable operations in harsh environment.
- Multi-language support
- Independent of PC/ laptop for setting up
Operator panel features
Operator panel features – The operator panel, in addition to
the alternator, displays the Utility/ AC Bus data.
Operator/ display functions
- 320 x 240 pixels graphic LED backlight LCD with bar graph for
- displaying electrical parameters
- Auto, manual, start, stop, fault reset and lamp test/panel lamp
- switches
- Alpha-numeric display with pushbuttons
- LED lamps indicating genset running, remote start, not in auto,
- common shutdown, common warning, manual run mode, auto
- mode and stop
Paralleling control functions
- Digital frequency synchronization and voltage matching
- Isochronous kW and kvar load sharing controls
- Droop kW and kvar control
- Sync check
- Extended paralleling (Peak Shave/Base Load)
- Digital power transfer control (AMF) provides load transfer
- operation in open or closed transition or soft (ramping) transfer mode
Modern Hiring Service (MHS) 1250kva – 1500kva diesel Generator on rent which designed to suit to need of every industry & has following benefits
- DG sets are housed in Container & Canopy DG sets which is sound attenuated, spill proof, Reliable & suitable for Outdoor Installation
- Powered by latest Cummins Engine fitted stamford alternator range
- Dual frequency capable 50Hz & 60Hz
- Easy to mobilize quickly
We are a unique name in the industry to provide our precious clients the best quality Diesel Generator on Rent . The provided service is carried out by our skilled team of professionals in the best possible manner.

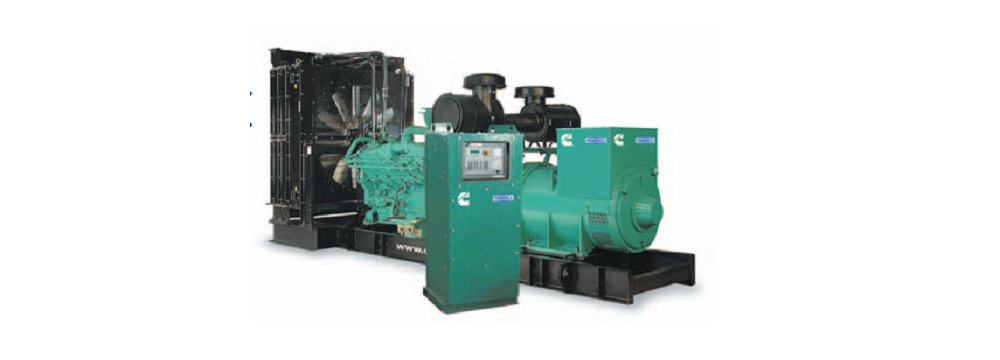

1250kVA - 1500kVA GENERATOR SET SPECIFICATIONS / GENERATOR ON RENT
|
| Model |
CP1250 D5 P |
CP1500 D5 P |
| Prime Power Rating kVA |
1250 |
1500 |
| Output Voltage and Frequency |
415 Volts, 50 Hz |
415 Volts, 50 Hz |
| Power Factor |
0.8 (lag) |
0.8 (lag) |
| No. of phases |
3 phase |
3 phase |
ENGINE SPECIFICATIONS
|
| Make |
Cummins |
Cummins |
| Model |
KTA 50 G3 |
KTA 50 G8-I |
| No. of cylinders |
16 ‘Vee’ |
16 ‘Vee’ |
| Aspiration |
Turbocharged-Aftercooled |
Turbocharged-Aftercooled |
| Bore x Stroke |
159 mm x 159 mm |
159 mm x 159 mm |
| Displacement |
50.3 ltrs |
50.3 ltrs |
| Output - Prime |
1470 bhp (1097 kWm) |
1735 bhp (1294 kWm) |
| Fuel consumption @ 75% load with Radiator & Fan |
190.8 ltr/hr |
231 ltr/hr |
| Fuel consumption @ 100% load |
251.8 ltr/hr |
301.7 ltr/hr |
| Typical oil consumption @ 100% load |
0.3 ltr/hr |
0.35 ltr/hr |
| Total wet weight ( engine + radiator) |
6824 kg |
7205 kg |
| Length x Width x Height (engine) |
2978 x 2080 x 1780 mm |
2978 x 2080 x 1780 mm |
| Compression Ratio |
13.9 : 1 |
14.9:1 |
| Piston Speed |
7.95 m/s |
7.95 m/s |
| Governor / Class |
Electronic / A1 |
Electronic / A1 |
| Lubricating oil sytem capacity |
177 ltrs |
177 ltrs |
| Coolant capacity (engine + radiator) |
440 ltrs |
510 ltrs |
| Combustion air intake @ 100% load (+/- 5%) |
81.6 m3/min |
95.5 m3/min |
| Fan air flow across radiator |
27357 ltrs/sec |
28400 ltrs/sec |
| Exhaust Temperature |
529 oC |
481 oC |
ALTERNATOR SPECIFICATIONS
|
| Make |
Stamford |
Stamford |
| Frame size / Model No. |
HCK6Z |
PI734C |
| Voltage Regulation |
0.50% |
0.50% |
| Insulation |
Class H |
Class H |
| Standard Enclosure |
IP 23 |
IP 23 |
| Winding Pitch |
2 / 3 Pitch |
2 / 3 Pitch |
| Stator Winding |
Double layer lap |
Double layer lap |
| Rotor |
Dynamically balanced |
Dynamically balanced |
| Wave form distortion |
No load < 1.8 %, non distorting
balanced linear load < 5 % |
No load < 1.8 %, non distorting
balanced linear load < 5 % |
| Telephone Interference Factor |
Better than 50 |
Better than 2% |
| Total Harmonic Factor |
Better than 2% |
Better than 2% |
GENSET DIMENSIONS
|
| Genset Model |
Rating
(kVA) |
Length
(mm) |
Width
(mm) |
Height
(mm) |
Weight
(kgs.)(Dry) |
Std. Fual Tank Capacity
(Ltrs) |
| CP1250 D5 P |
1250kVA |
6165 |
2235 |
2877 |
10800 |
990 |
| CP 1500D5 P |
1500kVA |
6090 |
2075 |
2850 |
12250 |
990 |
|
